WIYN FILTERS

See also the list of filters with flat field lamp settings and focus offsets.

wiyn # cwl fwhm peakt name & comments date
measured
age Data Tables Graph
w001 3579 643 78 U Harris Liquid w001
DECOMMISSIONED w033 is replacement
07-2001 1995 Full Full
w002 4304 1045 67 B Harris w002 07-2001 1994 Full Full
w003 5430 971 86 V Harris w003 07-2001 1994 Full Full
w004 6393 1524 82 R Harris w004 07-2001 1994 Full Full
w005 8372 2102 90 I Harris w005
DEGRADED - w035 is replacement
07-2001 1995 Full Full
w006 3447 508 59 u Gunn w006 07-2001 1995 Full Full
w007 3937 473 59 v Gunn w007 07-2001 1995 Full Full
w008 4916 697 88 g Gunn w008 07-2001 1995 Full Full
w009 6500 886 88 r Gunn w009 07-2001 1995 Full Full
w010 9219 1320 80 i Gunn w010 08-2001 1995   Full
w011 8450 cuton 95 z Gunn w011 07-2001 1995 Full Full
w012 6566 16 77 haN H-alpha narrow w012 08-2001 1995 Full or
Bandpass
FULL or
Bandpass
w013 6562 47 86 haW H-alpha wide w013 07-2001 1995 Full or
Bandpass
FULL or
Bandpass
w014 6562 378 89 haCont H-alpha cont w014 07-2001 1995 Full FULL or
Bandpass
w015 6569 73 84 ha UWisc H-alpha w015
DEGRADED - w036 is replacement
08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w016 6620 72 86 ha4 UWisc H-alpha+4nm w016 08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w017 6721 70 85 ha4 UWisc H-alpha+4nm w017
DEGRADED - w037 is replacement
08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w018 3086 57 55 OH comet set 2 w018 08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w019 4061 56 63 C3 Comet set#2 w019 08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w020 4447 62 71 Blue Cont comet set 2 w020 08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w021 5138 120 85 C2 comet set 2 w021 08-2001 1997 Full FULL or
Bandpass

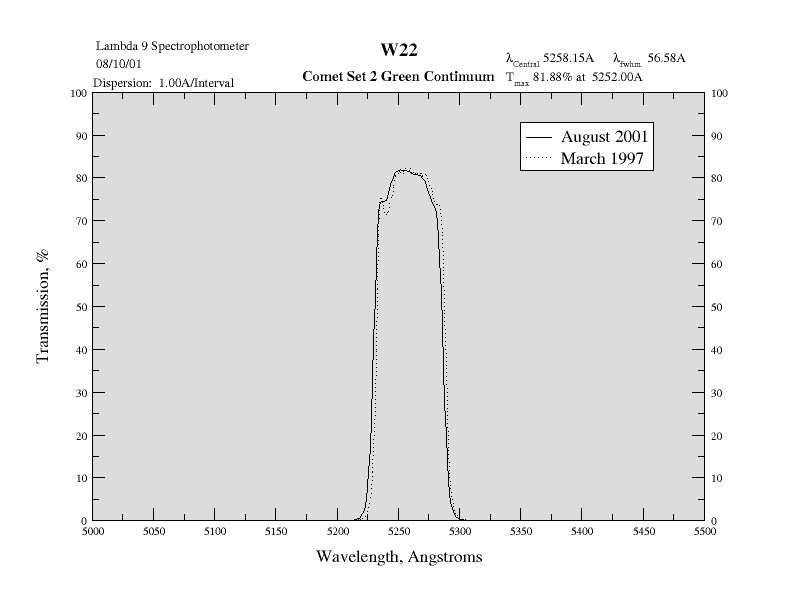

w022 5255 56 81 Green Cont comet set 2 w022 07-2001 1997 Full FULL or
Bandpass
w023 3440 75 31 UV Cont comet set 2 w023 08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w024 3879 70 47 CN comet set 2 w024 08-2001 1997 Full or
Bandpass
FULL or
Bandpass

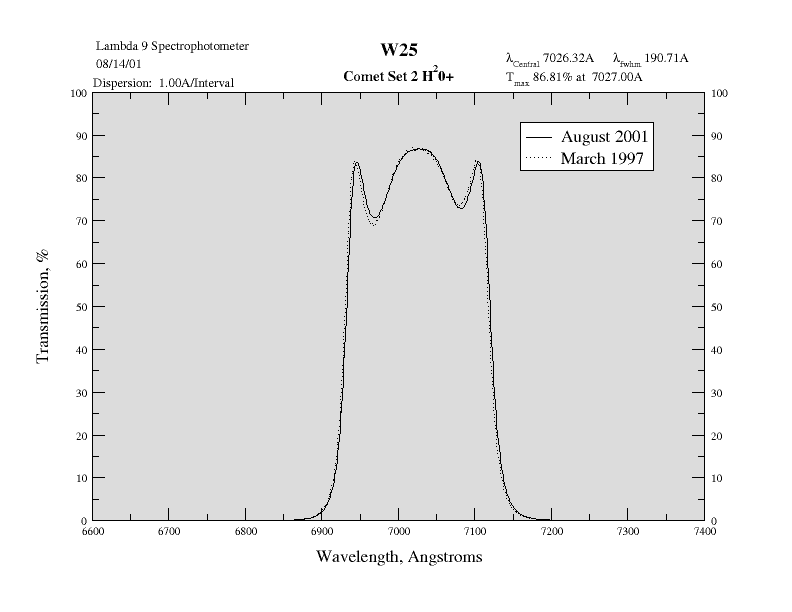

w025 7018 190 86 H20+ comet set 2 w025 07-2001 1997 Full FULL or
Bandpass
w026 7117 60 84 Red Cont comet set 2 w026 08-2001 1997 Full or
Bandpass
FULL or
Bandpass
w027 3736 26 86 OII UWisc w027 03-2003 1999 Full or
Bandpass
FULL or
Bandpass
w028 7786 201 91 TiO UWisc w028 03-2003 1999 Full or
Bandpass
FULL or
Bandpass
w029 8081 277 92 CN UWisc w029 03-2003 1999 Full or
Bandpass
FULL or
Bandpass
w030 5893 102 81 Na w030
[Andover etching=ANDV9388]
09-2004 2004 Full or
Bandpass
FULL or
Bandpass
w031 6576 44 86 N2 w031
[Andover etching=ANDV9387]
09-2004 2004 Full or
Bandpass
FULL or
Bandpass
w032 5288 230 89 Green Cont w032
[Andover etching=ANDV8969]
2003 2003 Full or
Bandpass
FULL or
Bandpass
w033 3640 572 62 U Harris solid w033
[Andover etching=ANDV9129-01]
02-2004 2004 Full or
Bandpass
FULL or
Bandpass
w034 0 - 0 Clear glass w034 - -
w035 8364 2127 93 I Harris new w035
[Andv7941-02]
11-2001 2001 Bandpass Bandpass
w036 6576 60 88 ha H-alpha new w036
[Andv10965]
03-2008 2008 Bandpass Bandpass
w037 6723 63 88 ha+16 H-alpha+16nm new w037
[Andv10966]
03-2008 2008 Bandpass Bandpass
w040 4748 1518 93 g' Sloan w040
[2-inch] Dedicated to WTTM
[Andover etching=ANDV8736]
08-2003 2003 Full or
Bandpass
FULL or
Bandpass
w041 6173 1300 96 r' Sloan w041
[2-inch] Dedicated to WTTM
[Andover etching=ANDV8737]
07-2003 2003 Full or
Bandpass
FULL or
Bandpass
w042 7686 1259 99 i' Sloan w042
[2-inch] Dedicated to WTTM
[Andover etching=ANDV8738]
07-2003 2003 Full or
Bandpass
FULL or
Bandpass
w043 8369 cuton 98 z' Sloan w043
[2-inch] Dedicated to WTTM
[Andover etching=ANDV8739]
07-2003 2003 Full Full
w045 4362 1066 74 B Kron w045
[2-inch] Dedicated to WTTM
08-2005 2003 Full or
Bandpass
FULL or
Bandpass
w046 5383 790 88 V Kron w046
[2-inch] Dedicated to WTTM
08-2005 2003 Full or
Bandpass
FULL or
Bandpass
w047 6308 1209 82 R Johnson w047
[2-inch] Dedicated to WTTM
07-2005 2003 Full Full
w048 8246 1990 92 I Kron w048
[2-inch] Dedicated to WTTM
2003 2003 Full or
Bandpass
FULL or
Bandpass
